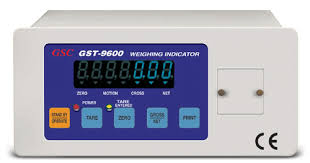

GST-9600
Sangat cocok untuk Floor scale , jembatan timbang dan bisa dihubungkan ke PC( Softwaire Timbangan) .

Timbangan Digital | Elektronik
Specifications:
- Load cell excitation 12 VDC± 5%
- Load current 280 mA ( max.) 8 ( 350) ohm load cells max.
- Input sensitivity 0.6 uV/ D to 120 uV/ D
- Zero adj. range 0.35 mV to 24 mV
- Span adjustment full digital calibration
- Input impedance 10 M©
- Display resolution 10, 000
- A/ D resolution 100, 000 counts
- A/ D conversion rate 70 times/ sec
- A/ D conversion method 3 phase tare integrating dual-slop type
- Under zero indication " --- " sign
- Non linearity + 0.01% of full scale
- Temp. coefficent zero...± ( 0.2 uV± 0.0008% of the initi offset voltage) oC span ...± 5 ppm/ oC of reading
- Power source 100, 110, 220, 240 50/ 60 Hz ( tactory installation)
- Net weight approx. 4.0 kg
- Operating temperature -5oC to + 40c.
